Henan Guorui Metallurgical Refractories Co., Ltd

Home ProductsDuctile Iron Inoculation

Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession

Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession

  • Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession
  • Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession
Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession
Product Details:
Place of Origin: Anyang Henan
Brand Name: Guo Rui
Certification: ISO9001
Model Number: 10-50mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1MT big bag or as per customer request
Delivery Time: Half a month after signing the contract
Payment Terms: L/C, T/T
Supply Ability: 20,000MT/year
Contact Now
Detailed Product Description
Product Name: SiBa Size: 10-50mm
Containing: Ba, Si Performance: Deoxidizer
Appearance: Lump Industry: Steelmaking
Category: Iron Alloy Grade: FeBa15Si50
High Light:

calcium silicon manganese

,

barium silicon

Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession






Introduction:


     The silicon germanium inoculant is a massive metallurgical material obtained by blending silicon powder and tantalum powder according to the demand ratio and then making steel through a high temperature furnace. It is an additive in the foundry casting process, which can promote graphitization, reduce the tendency of white mouth, improve the shape and distribution of graphite, increase the number of eutectic groups, refine the characteristics of matrix structure, and it is short time after inoculation treatment. Inside (about 5-8 minutes) has a good effect.



Specification:



Grade Chemical Composition(%)
Ba Si Al Mn C P S
FeBa30Si50 30 50 3.0 0.40 0.30 0.05 0.05
FeBa25Si40 25 40 3.0 0.40 0.30 0.04 0.04
FeBa20Si45 20 45 3.0 0.40 0.30 0.04 0.04
FeBa15Si50 15 50 3.0 0.40 0.30 0.04 0.04
FeBa10Si55 10 55 3.0 0.40 0.20 0.04 0.04
FeBa5Si60 5.0 60 3.0 0.40 0.20 0.04 0.04
FeBa2Si65 2.0 65 3.0 0.40 0.20 0.04 0.04
Size: 10-50mm
Other chemical composition and size can be supplied upon request.


Used:


     1. Strongly increase the graphitization core, refine the graphite, promote the A-type graphite in the gray cast iron parts, and improve the strength. For the ductile iron parts, the graphite in the ductile iron can be fine and round, and the spheroidization grade can be improved.

     2. Can effectively reduce the degree of coldness of molten iron, promote the precipitation of graphite, significantly reduce the tendency of white mouth, reduce the relative hardness, improve the cutting performance of castings.

     3. Strong anti-recession ability, anti-recession time is twice that of 75 silicon, the amount of silicon germanium inoculant added is lower than half of 75 ferrosilicon inoculant, while preventing the associated spheroidization decline.

     4. The wall thickness sensitivity is small, improve the uniformity of the section, reduce the tendency to shrink.

     5. The chemical composition is stable, the processing granularity is uniform, and the composition and quality deviation are small.

     6. The melting point is low (below 1300°), it is easy to absorb and melt when inoculation, and there is very little scum.



Graphic:

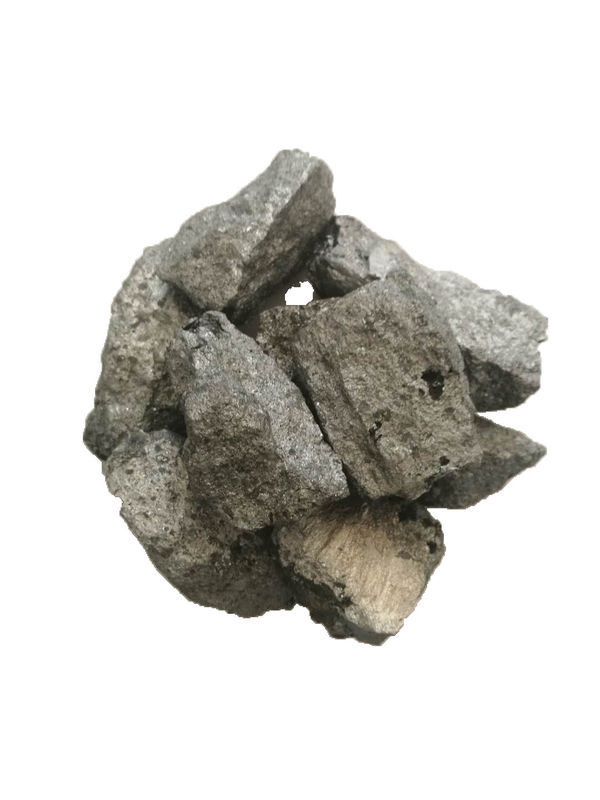

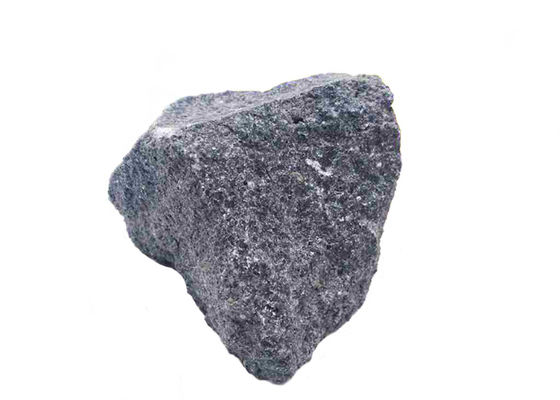

Silicon Germanium Inoculant SiCaBa Metallurgical Inoculant Anti Recession 0


F & Q:

1. What is our MOQ?
Basically, Our MOQ is 20 tons. There is no specific limit to order, we can give the best offer according to your situation.
2. Do you provide samples?
Yes, We do. Samples are always available and they can be sent to you directly.
3. How long does the delivery time take?
Our normal delivery time takes about 3 weeks once the contract singed, but it also depends on the quantity of the order.
4. Can we visit your plant?
Of course, we will be always looking for you.
